FOS hip and valley clip 512-100

FOS® Hip and valley clips

The hip and valley clips 512 and 513 are a safe and universal solution for fixing cut roof tiles in the hip, valley and other roof edges. They prevent beaver tail, flat tiles and common roof tiles from slipping. Used in combination with beaver tail tiles or plain tiles, the 513 can function as an additional/new nib, which will allow the tile to sit more securely on the batten.

With its four collars and two claws, this clip offers a 100% secure hold even on uneven surfaces or on roof tiles with embossed writing on the back. The FOS® hip and valley clips are supplied either with a bendable perforated strips made of stainless steel and integrated SPAX® screw (512) or with an attached wire (513). They are easy to fit and can be quickly secured onto the batten. Drilling of tiles becomes obsolete and shorter installation time is guaranteed.

2024 FOS has optimised both clips.

The product advantages of the new 7-star clips at a glance:



  • One for all;
    Largest clamping range on the market: 7 to 22 mm with one clip.
  • Easy Handling
    About 50 % less storage space!
  • More than strong
    20 % more holding power than comparable clips due to new barbed hook geometry.
  • Simple even without

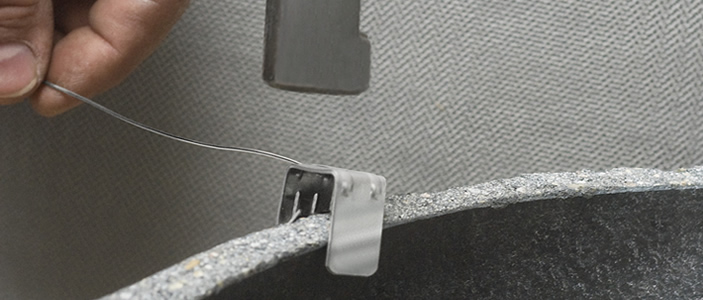

    Easy to install due to new geometry: no hammer needed for tiles up to 16 mm thickness.
  • Does what you want, where you want

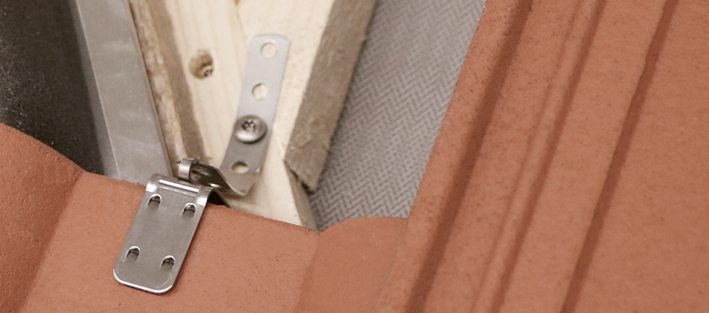

    Unlimited fixing possibilities with 512-100 thanks to flexible 115 mm perforated strip.
  • All inclusive
    512-100 with high-quality stainless steel screw from SPAX® and bit.
  • One of ours
    Developed, manufactured and tested by FOS® in Germany.
FOS Productflyer Hip and valley clip 512 513 100 PDF (882 KB)
