436d eaves clip to screw


The eaves clip 436d scores high due to its strength and flexibility. The metal strip with the pre-punched holes can be easily bent to the required height during installation. The adjustable round or angular end adjusts to the sidelock of various roof tiles.

It is deliverable in round and angular hook forms and in different lengths. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten. Stainless steel BS 304 S 15 or ZIAL® (zinc aluminium) coated surfaces guarantee long durability of the eaves clip. The 436d is offered in small packaging units of 100 pieces each.

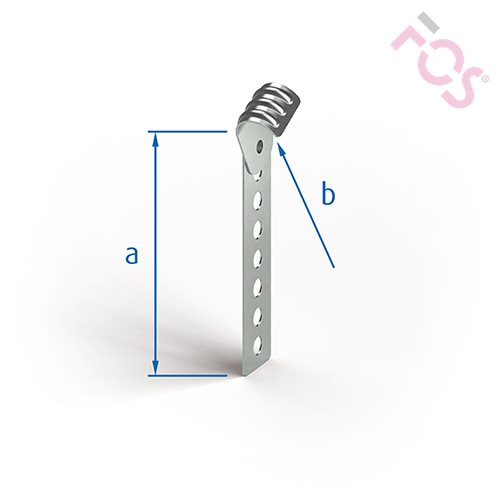

With round hook and adaptable angle

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
FOS eaves clip 436d rund
abCode
080,0006,0436d01
080,0006,0436d04

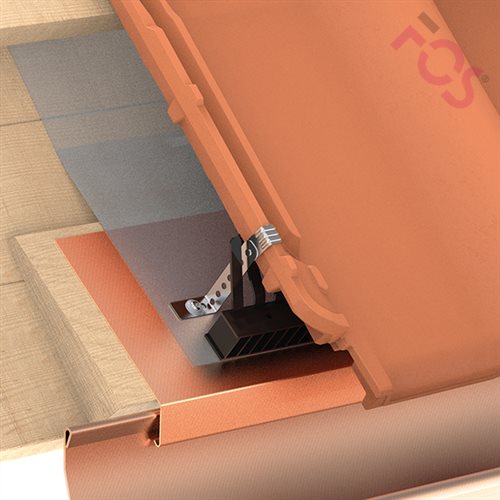

Application picture Installation instruction

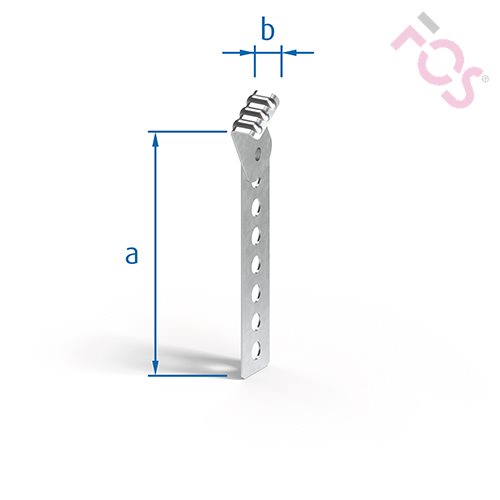

With angular hook and adaptable angle

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
FOS eaves clip 436d eckig
abCode
080,0006,0436d02
080,0019,0436d03
080,0020,0436d05
085,0011,5436d06
Application picture Installation instruction

Advantages

  • High quality materials.
  • Deliverable in different lengths.
  • Deliverable in round and angular hook forms.
  • For screwing at batten.
  • Hole line facilitates flexibility in installation.
  • Bent to desired height by processor.
  • German Federal Utility Model.
  • Small packaging unit: 100 pcs.
