415c® beaver tail clip to mount on


Beaver tail tiles, in a double-lap layout, are fixed with the 415c® clip. Laborious tile drilling and screwing work is eliminated. For buildings in exposed areas, such as churches and the like, FOS® also advises using the 415®K beaver tail clip. It connects two rows of beaver tail tiles with one another and reliably prevents the beaver tail tiles from raising in the foot area. A combination of the 415c® and the 415®K is also used for beaver tail tiles in a crown tile roofing layout. The 415c® creates the connection to the main battens, while the 415®K connects the covering layer and the bearing layer.

It is advisable to use the 415® screw variant for special battens for which there is no suitable 415c® in stock. This is screwed down on the tiling batten between two beaver tail tiles and is available for beaver tail tiles of different thicknesses. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the beaver and the batten. Stainless steel BS 304 S 15 or ZIAL® (zinc aluminium) coated surfaces guarantee long durability of the clip. Packaging unit of the 415c® depends on the product variant.

Stamp of approval DIN EN 14437FOS quality Made in Germany and tested according to DIN EN 14437

This storm clip has been produced in FOS® quality Made in Germany and tested according to DIN EN 14437.



ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301

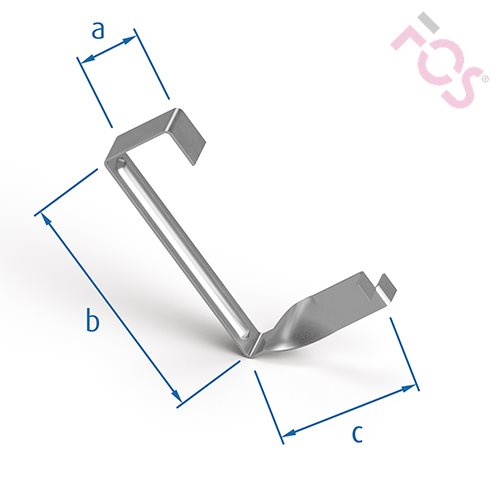

FOS beaver tail clip 415c 01
abcBeaver thicknessBattensCode
025,0080,0045,010 - 13 mm24 x 48415c07
025,0080,0048,014 - 17 mm24 x 48415c01
025,0080,0053,018 - 20 mm24 x 48415c05
025,0090,0045,010 - 13 mm24 x 60415c15
025,0090,0048,014 - 17 mm24 x 60415c14
032,0080,0048,010 - 13 mm30 x 50415c08
032,0080,0053,014 - 17 mm30 x 50415c02
032,0080,0059,018 - 20 mm30 x 50415c03
032,0080,0064,020 - 23 mm30 x 50415c16
042,0090,0059,010 - 13 mm40 x 60415c09
042,0090,0064,014 - 17 mm40 x 60415c04
042,0090,0069,018 - 20 mm40 x 60415c06
042,0090,0075,020 - 23 mm40 x 60415c13
050,0093,0067,010 - 13 mm50 x 70415c12
050,0093,0072,014 - 17 mm50 x 70415c11
050,0093,0077,018 - 20 mm50 x 70415c10

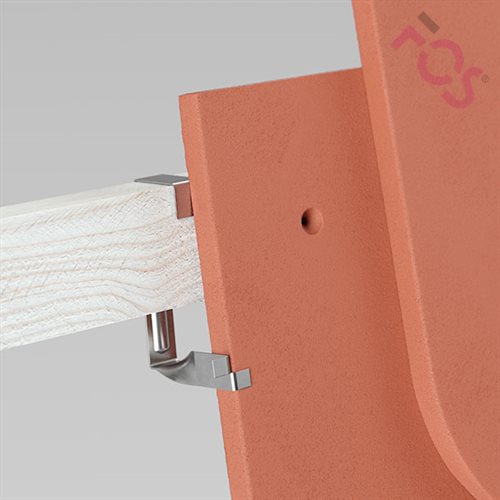

Application picture Installation instructionProduct flyer

Advantages

  • Suitable for double-lap.
  • Storm safety in compliance with professional standards.
  • High quality materials.
  • Deliverable in various sizes depending on beaver thicknesses.
  • Suitable for standard wooden battens.
  • Tool-free installation.
  • Packaging unit depends on the product variant.
