417® sidelock clip to mount on


The sidelock clip 417® offers high resistance against wind uplift. One end of the clip is placed the furthest way down on the sidelock of the tile on top. The other end is brought behind the batten and placed on the sidelock of the tile below.

The clip is available for all common batten sizes, in various lengths and with a round and an angular hook. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten. Stainless steel BS 304 S 15 and BS 301 S 22 or ZIAL® (zinc aluminium) coated surfaces guarantee long durability of the sidelock clip. Packaging unit of the 417 depends on the product variant.

Stamp of approval DIN EN 14437FOS quality Made in Germany and tested according to DIN EN 14437

This storm clip has been produced in FOS® quality Made in Germany and tested according to DIN EN 14437.

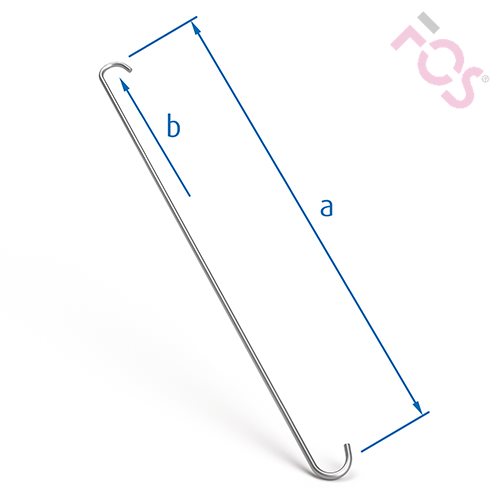

With round hook

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
FOS sidelock clip 417 003
abCode
200,0006,0417001
220,0006,0417002
240,0006,0417003
260,0006,0417004
280,0006,0417005
300,0006,0417006
320,0006,0417007
340,0006,0417008
360,0006,0417909
380,0006,0417910

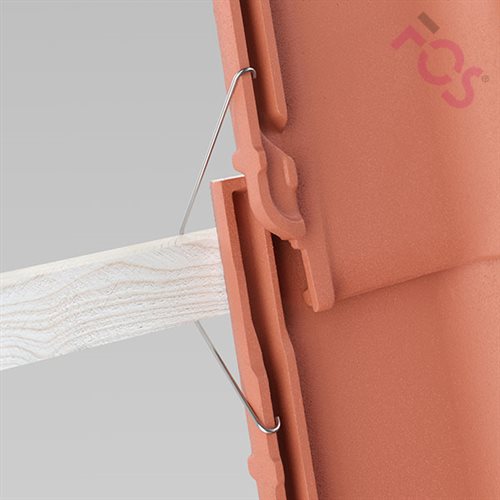

Application picture Installation instruction

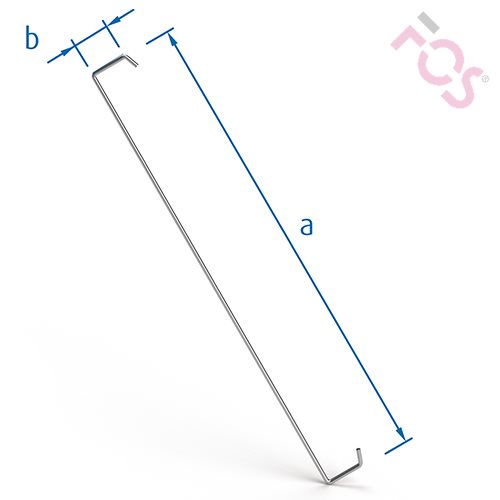

With angular hook

Stainless-steel-17981
1.4310
FOS sidelock clip 417 100
abCode
240,0017,5417100
260,0017,5417101
300,0006,5417906
Application picture Installation instruction

Advantages

  • Storm safety in compliance with professional standards.
  • High wind uplift resistance.
  • High quality materials.
  • Suitable for standard wooden battens.
  • Tool-free installation.
  • Packaging unit depends on the product variant.
