435 sidelock clip to mount on


The tool-free pre-installation is a particular advantage of the 435. In the lower section of the roof tile, directly on the side lock, it secures three roof tiles simultaneously, like all other side lock clips. This is confirmed by tests according to EN 14437.

The clip is available for all common batten sizes, in various dimensions with a round and an angular hook. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten. Stainless steel BS 304 S 15 or BS 301 S 22 or ZIAL® (zinc aluminium) coated surfaces guarantee long durability of the sidelock clip. The 435 is offered in packaging units of 250 pieces each.

Stamp of approval DIN EN 14437FOS quality Made in Germany and tested according to DIN EN 14437

This storm clip has been produced in FOS® quality Made in Germany and tested according to DIN EN 14437.



With round hook

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
Stainless-steel-17981
1.4310

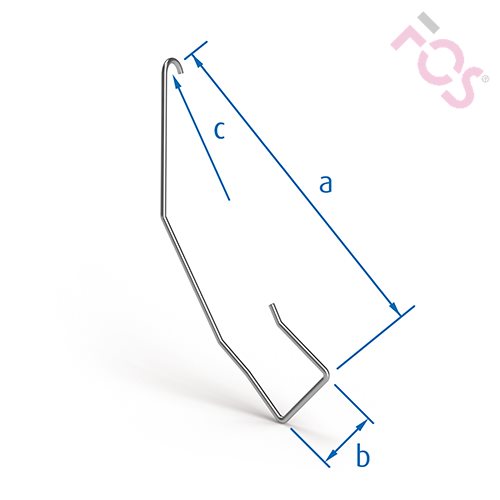

FOS sidelock clip 435 013
abcBattensCode
129,1024,5005,024 x XX435013
137,9024,5005,024 x XX435064
152,5024,5006,024 x XX435074
160,3024,5005,024 x XX435040
167,2024,5006,024 x XX435072
177,1024,5006,024 x XX435073
185,4024,5005,024 x XX435070
152,5032,0006,030 x 50435103
167,0032,0006,030 x 50435001
177,1032,0006,030 x 50435101
191,9032,0006,030 x 50435116
152,5036,0006,036 x 48435107
167,7042,0006,040 x 60435104
182,1042,0006,040 x 60435002
192,2042,0006,040 x 60435102
206,9042,0006,040 x 60435115
224,2042,0006,040 x 60435119
204,9046,0006,045 x XX435120
177,4050,0006,050 x XX435110

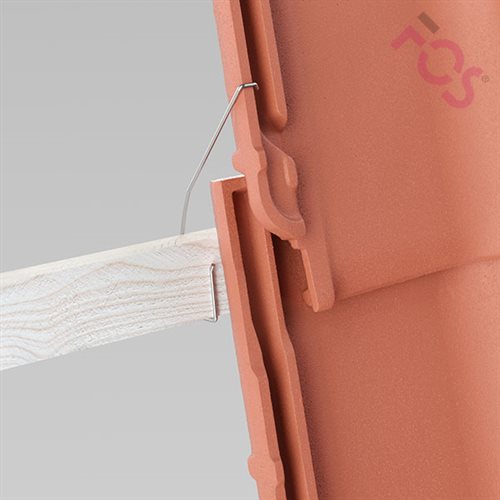

Application picture Installation instruction

With angular hook

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
Stainless-steel-17981
1.4310

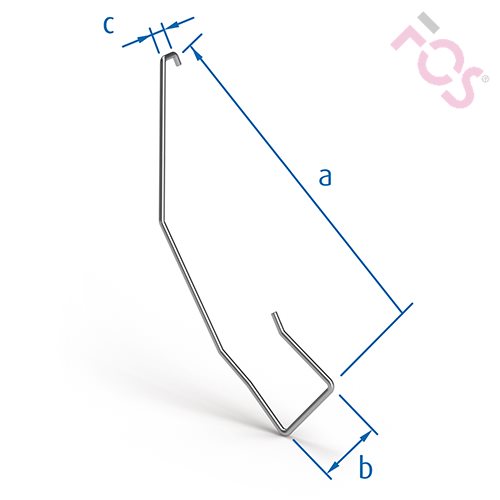

FOS sidelock clip 435 003 45
abcBattensCode
118,1024,5007,024 x XX435043
130,5024,5007,024 x XX435003
130,6024,5010,024 x XX435076
133,5024,5007,024 x XX435031
139,4024,5007,024 x XX435061
148,4024,5007,024 x XX435058
148,4024,5010,024 x XX435055
152,5024,5007,024 x XX435075
135,4025,5007,025 x XX435007
152,5032,0007,030 x 50435105
167,2032,0007,030 x 50435113
167,2032,0013,030 x 50435111
157,3042,0007,040 x 60435121
167,7042,0007,040 x 60435106
182,3042,0007,040 x 60435114
182,4042,0013,040 x 60435112
216,3061,0007,060 x 60435122

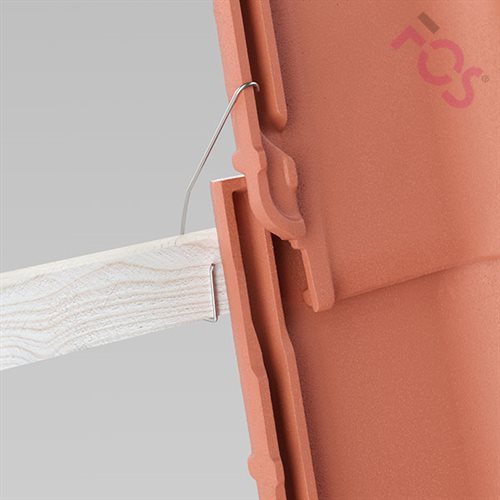

Application picture Installation instruction

Advantages

  • Storm safety in compliance with professional standards.
  • High quality materials.
  • Deliverable in different lengths.
  • Deliverable in round and angular hook forms.
  • Suitable for standard wooden battens.
  • Suitable for most standard roof tiles.
  • Replacement of single tiles possible.
  • Possible for pre-installation.
  • Tool-free installation.
  • Shorter installation time.
  • Low risk of injury.
  • Packaging unit: 250 pcs.
